circuit breaker testing with the revolutionary Circuit Breaker Analyzer system
Circuit Breaker Analyzer
  Windows® Software Program For
Testing All Types & Ratings of Circuit Breakers
  • Overall Mechanical Condition
• Confirm Maintenance Intervals & Lubrication
• First Trip Testing for Arc Flash Compliance
    Questions? Need More Information or a Quotation?
Phone: 972-290-0074 or  contact Circuit Breaker Analyzer
  register or login here to reach your CB Analyzer Account Manager
Home Breaker Testing Overview First Trip Testing FAQ Videos Free Information Pricing Group CBS Support Contact Us

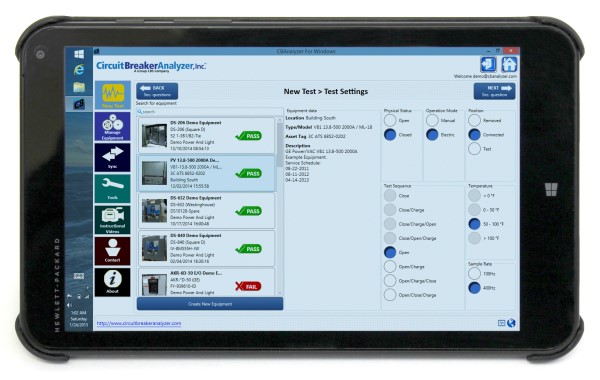

circuit breaker analyzer software program setup screen on tablet pc
Test Setup Screen on Tablet PC

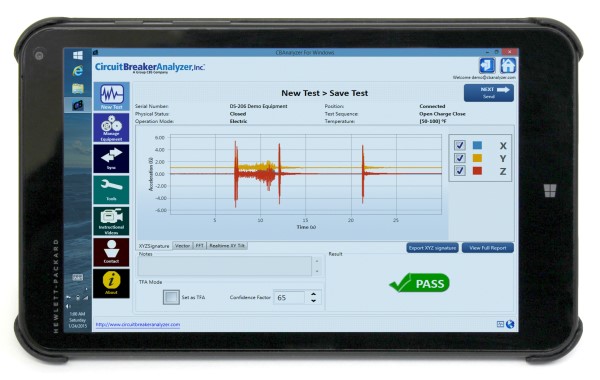

  circuit breaker testing software program test result screen
Test Result Screen
  circuit breaker testing software program test result screen

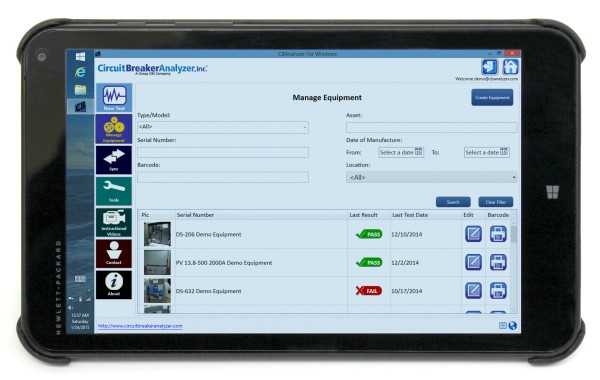

Equipment Listing/Management Screen

The CBAnalyzertm system, is a new circuit breaker testing method that utilizes a Windows software program on a laptop or tablet pc to determine the condition of all types of circuit breakers.

The system combines vibration analysis, internet data transfer and sophisticated, condition-based analysis together with an online equipment database to easily and quickly test your circuit breakers without removing the breakers from their mounting or cubicle.

The CBAnalyzer breaker testing system provides numerous valuable benefits including:

  • Simple operation requiring minimal training
  • Very portable -- it's a laptop or tablet pc running our Windows software program
  • No modification of the circuit breaker is required
  • No electrical connections are required
  • Removal of the circuit breaker from its mounting or cubicle is not required
  • Testing can be performed during routine switching
  • Data is easily transmitted over the internet to the users account where it is analyzed and compared with a known good profile (KGP) for that type of circuit breaker to determine:
            • Overall mechanical condition
            • Confirm maintenance intervals and lubrication
            • First trip testing data for arc flash compliance
            • Arc flash study validation checks
  • Perform detailed analysis and store maintenance records using CBAnalyzer suite software
  • Access to the CBAnalyzer Account Manager which:
            • is where user accounts are created and each user's role is designated
            • provides access to your equipment database and test data archives
            • is where tests are synced
            • is where your equipment data is entered and stored
            • is required to use the CBAnalyzer software program

Use the following links for more details on the CBAnalyzer circuit breaker test system:

Have questions? Want to discuss your application? How about a demo? Please contact us for immediate assistance.

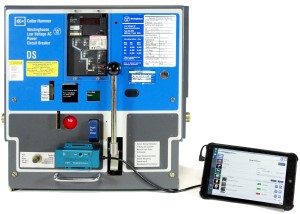

tablet pc testing circuit breaker using Windows version of CBAnalyzer software program CBAnalyzer software on tablet pc
connected to circuit breaker via
magnetically mounted accelerometer

CBAnalyzer system in use testing circuit breaker
CBAnalyzer system in use
testing circuit breaker
